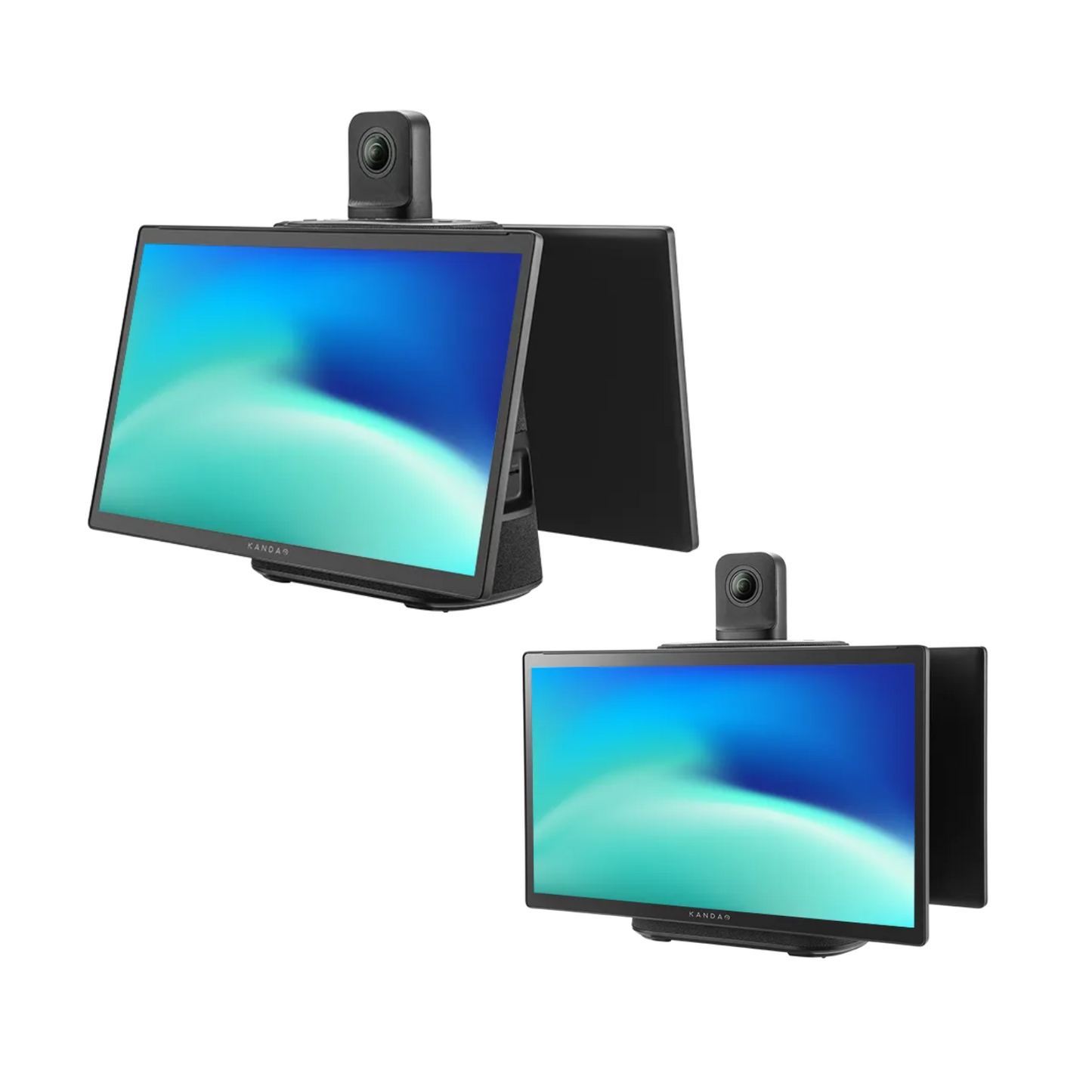

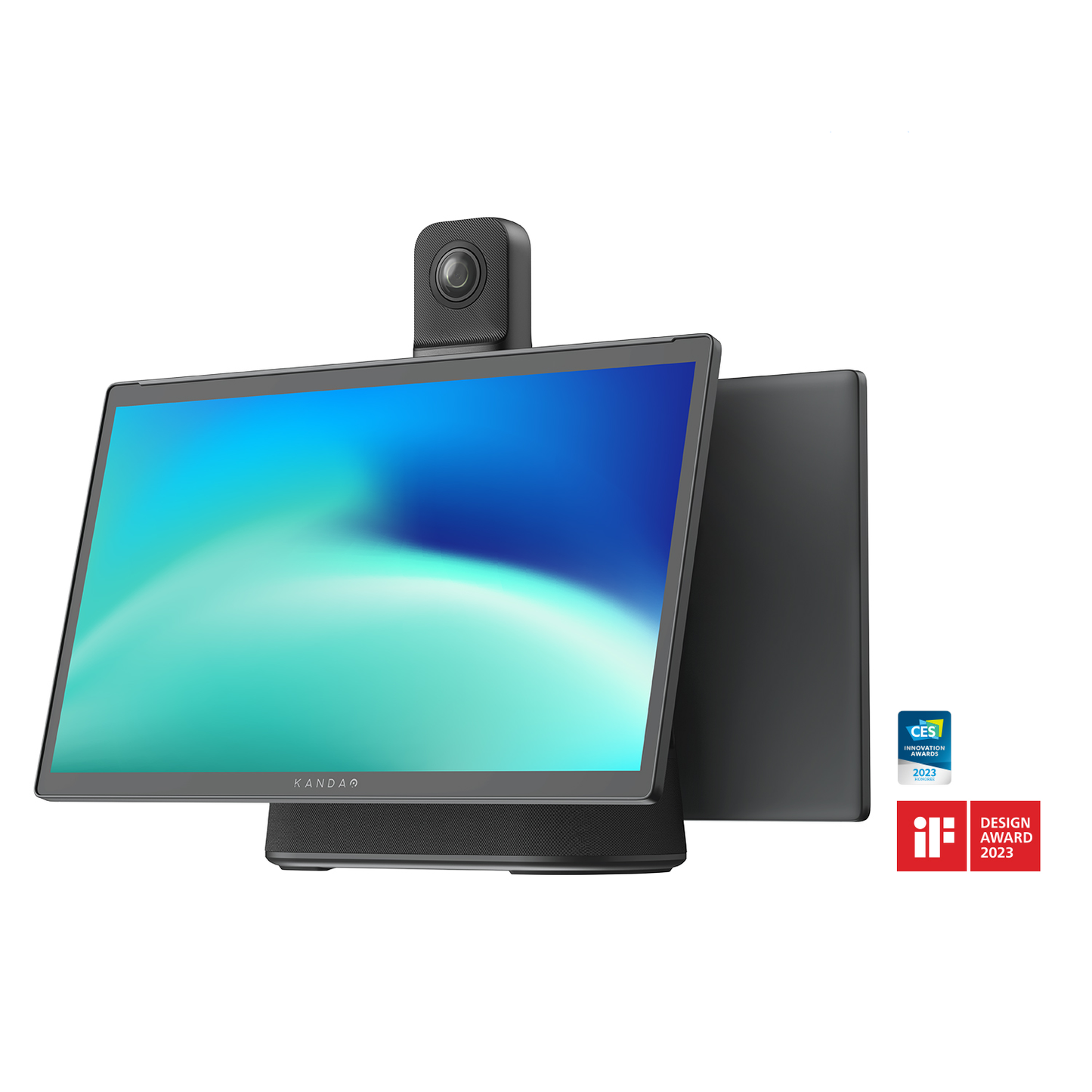

Kandao Meeting Ultra, a standalone all-in-one device with cameras, mics, speakers, touchscreen displays, and Android OS. It can output up to 4K HDR video.With 2 FHD displays and 10-point capacitive touch, Meeting Ultra can not only be presented in high-definition but also touch-controlled. It has a more powerful AI Detection Algorithm 4.0, a richer choice of Conference Modes, and Ambient Noise Cancellation. Combined with a built-in Android system, where users can download video conferencing software directly onto the device creates a perfect solution for hybrid collaboration.
Kandao Meeting Ultra
- OVERVIEW
- SPECS
and Keep in Touch
Dual 4K HDR Capture
(3840X2160 Output)
Dual Touch Screens
Omni-directional Mics
Hi-Fi Speaker
Standalone mode with Android OS
360 Face Detection
Multiple Conference Views
Hybrid Collaboration
360-DEGREE FIELD OF VISION
360° Fully Covered for Conferencing Equally
No need to squeeze together in front of a single webcam. Every participant can be well seen and heard from the two lenses to cover the whole meeting room, and the eight omnidirectional mics, Kandao Meeting Ultra enables attendees to join in the meeting equally.
Smart Tracking
Follow the Speaker
With AI motion detection algorithm, the speaker is smartly tracked and auto-framed. No need to sit fixed in front of the camera, the speaker can stand up and walk around to give a presentation.
CPU, GPU and NPU
Get a Real-Time Feedback
A seamless conversation is achieved with powerful CPU, GPU, and NPU through stable transmission, precise human-face and voice detection, and low-latency tracking of whoever is speaking.
8-core
CPU
4-core
GPU
6-Tops
NPU
Algorithm 4.0
AI Speaking Person Detection Algorithm 4.0
Kandao Meeting Ultra features an upgraded AI Detection Algorithm 4.0 which can accurately localize and auto-frame the local meeting attendees, especially the active speaking person in ultra-low latency with 15-degree ultimate recognition. The active speaker is always highlighted and placed in the center focus for remote participants.
AI 4.0
Detection Algorithm
15degree
ultimate recognition

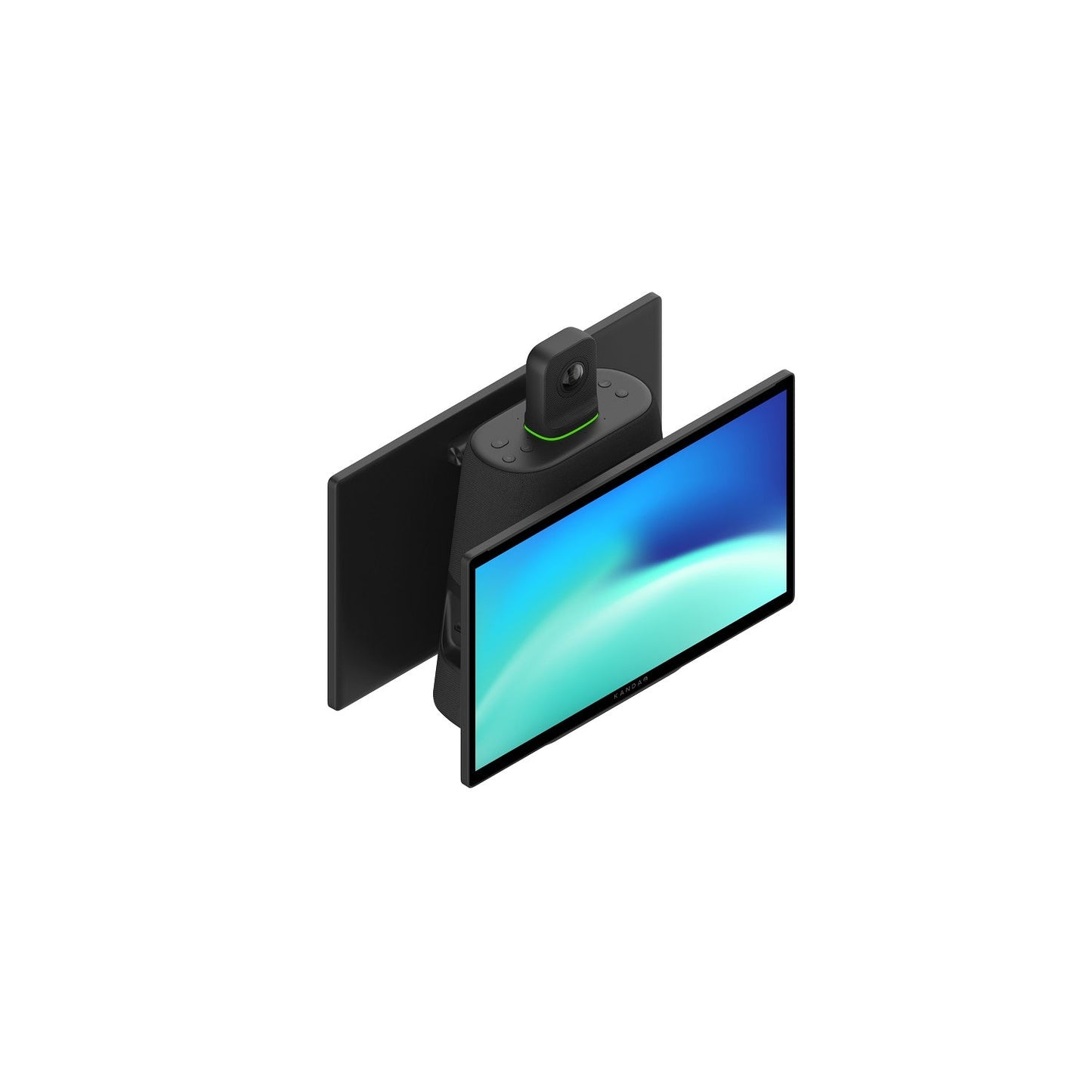

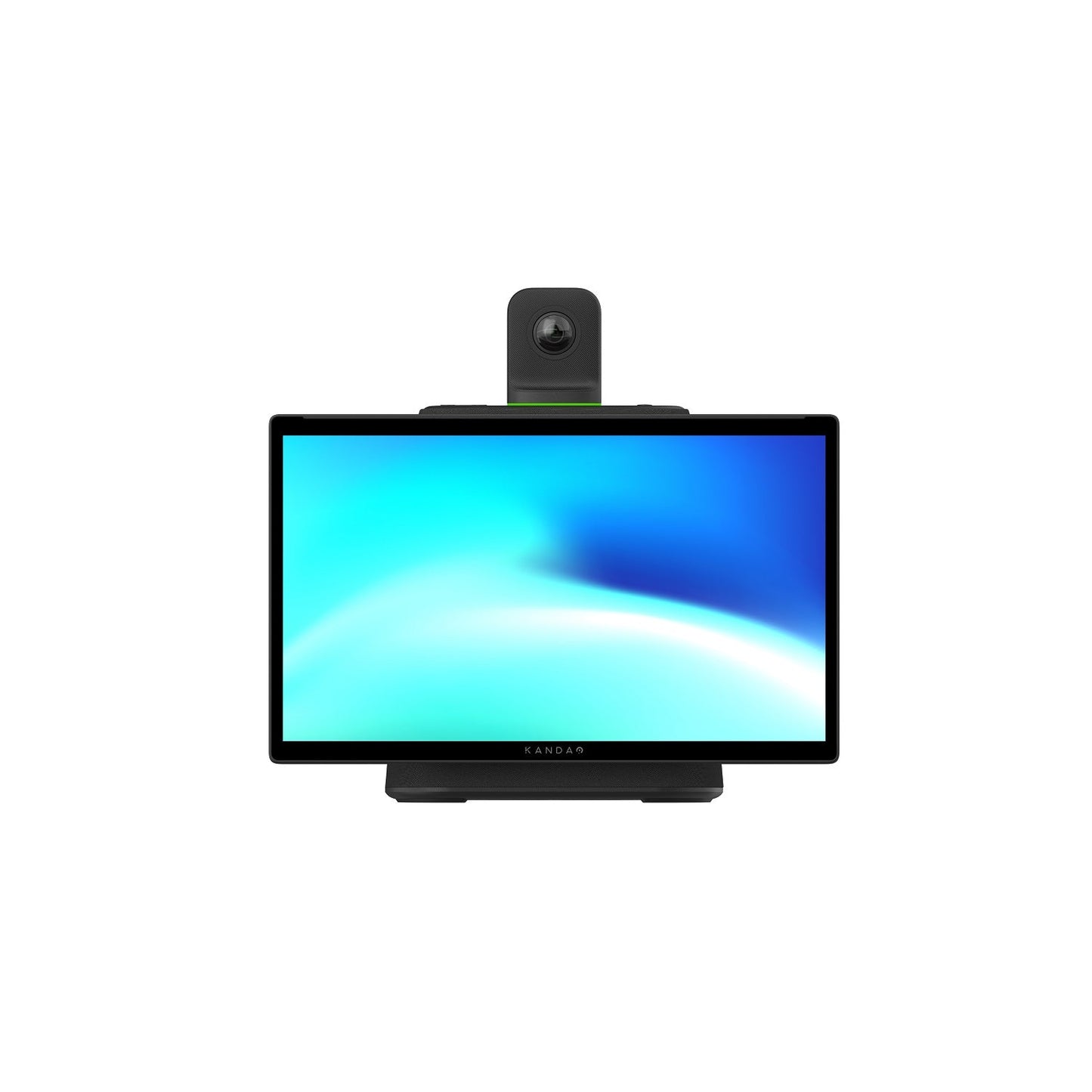

Screens underneath the Cameras
See in front, and to be seen in front
Positioning two FHD screens right underneath the camera creates a more face-to-face collaboration by displaying the meeting right in front of you while showing the front face of local users to the remote attendees.
Clear Screens
Always see clearly

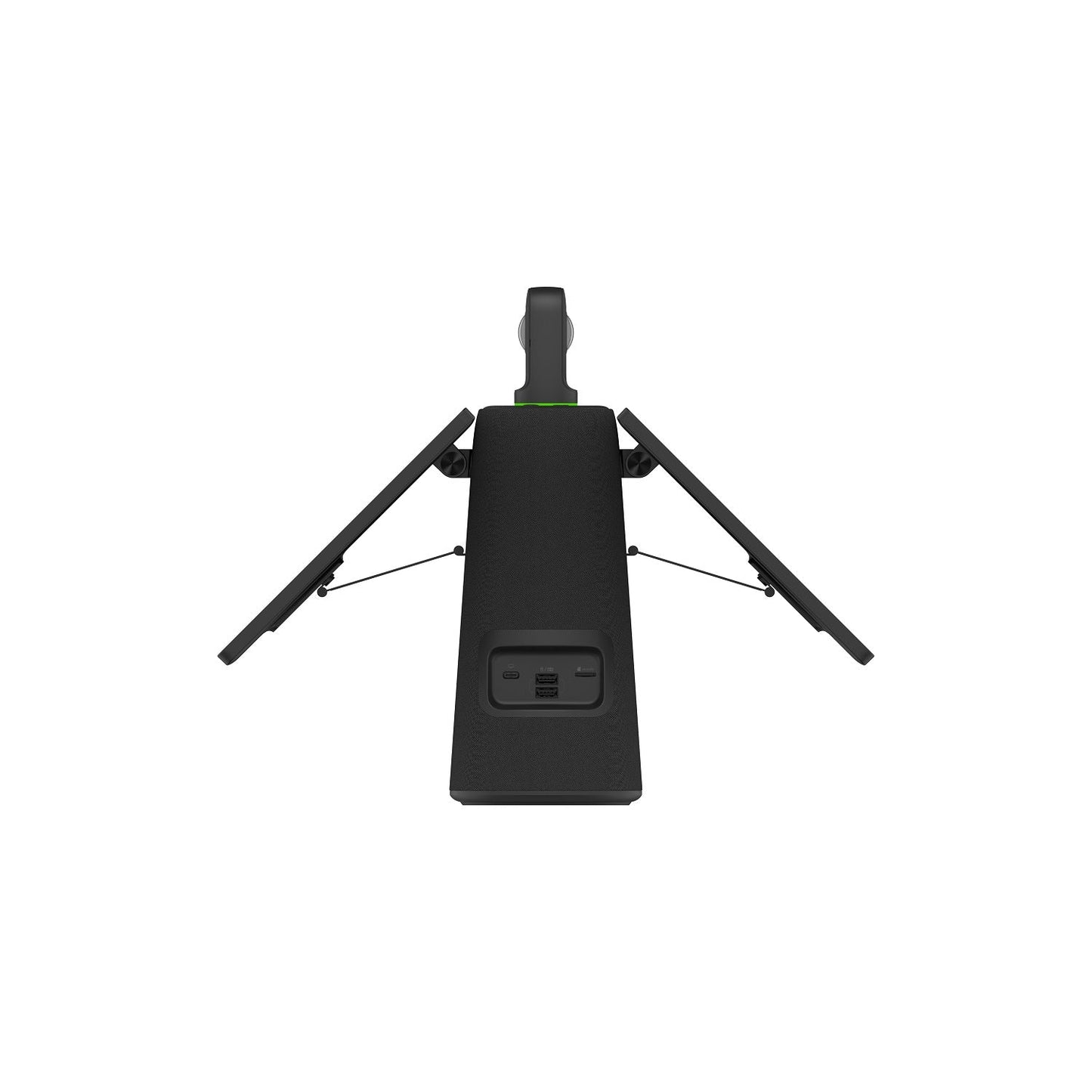

Two In-Plane Switching (IPS) touchscreen displays are 15.60 inches for excellent color performance, a wider viewing angle, and outstanding screen consistency. Users in front of the display can see remote participants clearly in comfort because both screens are adjustable within 48 degrees of the pitching angle.
15.6”
Both touchscreens
AF
Anti-Fingerprint
AR
Anti-Reflection
Speaker and Microphones
Your Idea is Well Conveyed and Heard
Kandao Meeting Ultra has a full-duplex audio system composed of an eight-omnidirectional microphone array and a 10 Watt Hi-Fi speaker. This not only ensures a wide 5.5-meter-radius voice pickup range but also premium sound quality output for conveying clear messages in remote meetings.
8
microphones
10Watt
Hi-Fi speaker
5.5m
radius voice pickup
NOISE CANCELLATION
Ambient Noise Cancellation
Even in noisy surroundings, voice can be well-conveyed with a brand-new AI noise reduction algorithm. Without affecting the clarity and quality of voices, it cancels distracting noises such as keyboard typing, car honking, doors opening and closing, chairs moving, pen clicking, and noise from other equipment, creating a focused meeting environment.
360 Video Conferecing
IMAGE QUALITY
Meeting Ultra Clear 4K with HDR
Wave goodbye to blurred image quality. Kandao Meeting Ultra output streams at 4K 30FPS HDR video to get rid of over-exposed images even when conferencing near windows. The built-in noise reduction algorithm creates vivid and clear hybrid meeting experiences like never seen before.
Android OS
All-in-one Touch-Controlled Operation System
With two FHD displays and 10-point capacitive touch, Meeting Ultra can not only be presented in high-definition but also touch-controlled. Combined with a built-in Android system, where users can download video conferencing software directly onto the device creates a perfect solution for hybrid collaboration.

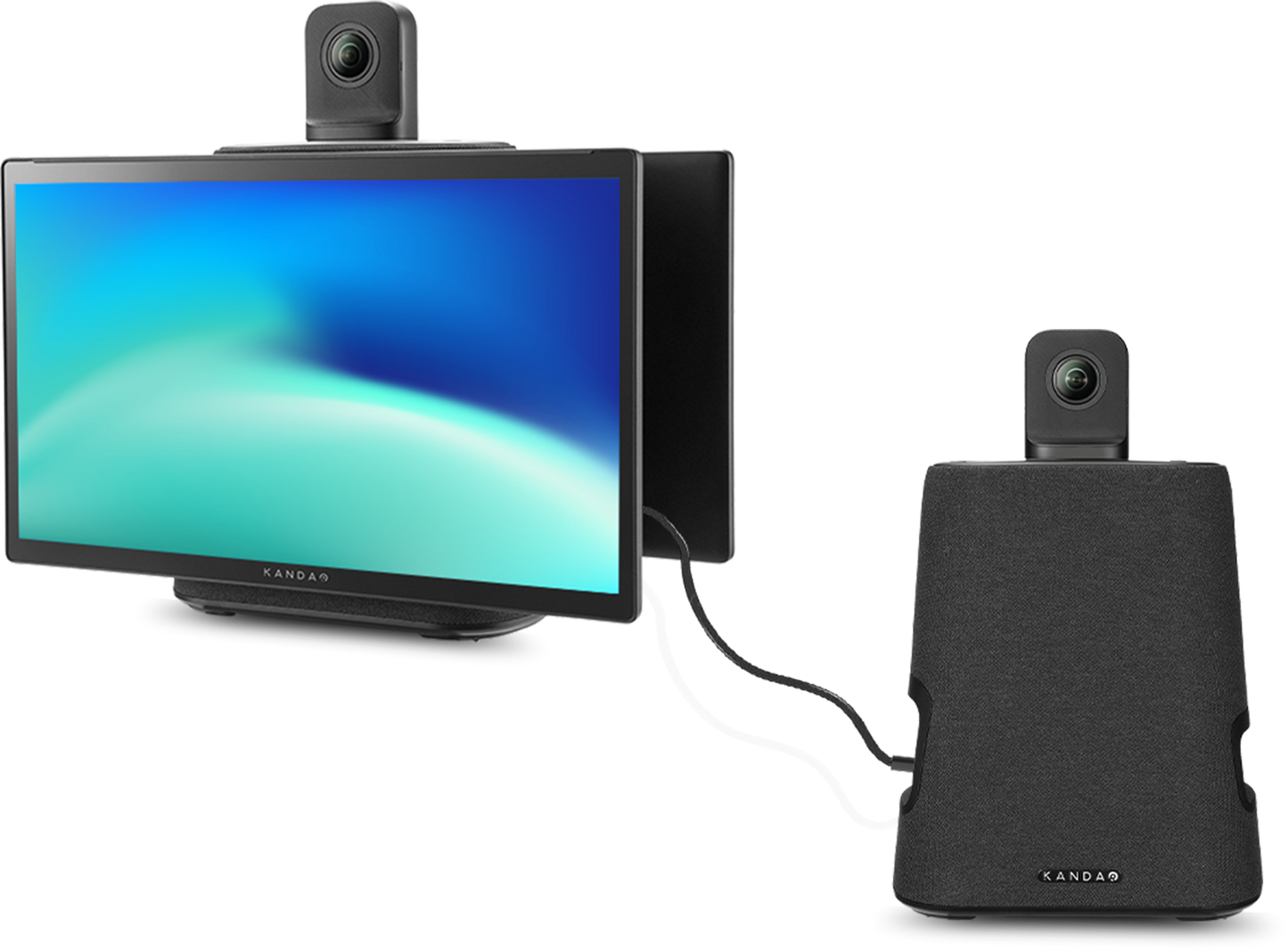

TWO METHODS TO USE
Multiple Choices for Setup and Placement
USB mode
Connect Meeting Ultra to your computer with a USB cable to start a hybrid collaboration with auto-framing.
Standalone mode
It’s a total conferencing solution with dual 4K lenses, a built-in operation system, two touch screens, an eight-microphone array, a Hi-Fi speaker, and dual 4K lenses. You are all set for a meeting.
HDMI IN AND OUT
Share Your Screen through HDMI
HDMI IN
Connect your computer to Kandao Meeting Ultra through HDMI IN to share your computer screen.
Display in Different
Two HDMI OUT
Supports HDMI outputs to two external screens, so everyone can see clearly in a large space. The screens on the device and external screens can display differently to share screens while managing the meeting.
SCREEN MIRRORING
One-Step Screen Mirroring from Multi-Type Devices
Get rid of messy wires with built-in screen mirroring. Supporting Airplay and Miracast protocol means users can share screens from iOS devices, MacOS devices, Android devices, and Windows-system devices.
Conference Situation
CONFERENCE MODE
Smart Conference Modes
Kandao Meeting Ultra has three discussion modes for multi-attendee framing, main-speaker focusing, and all-attendee displaying. The panorama on top is optional to show all attendees. Under Gallery View and Speaker View, it can automatically adjust the view according to the detected number of attendees.
Manual Conference View Adjustment
Highlight a specified speaker by manually panning the main split-screen and zooming in after view-locking.
Optional Panorama on Top
The panorama on top is optional for showing all attendees.
Setup an Ignore Zone
You can mark an Ignore zone and adjust their range to disable auto-framing.
Everything is in Control
Dual FHD Touch Management
Dual 15.6” Ultra-responsive 10-point capacitive touch displays with a built-in Android operation system make it easy for anyone to participate and interact.

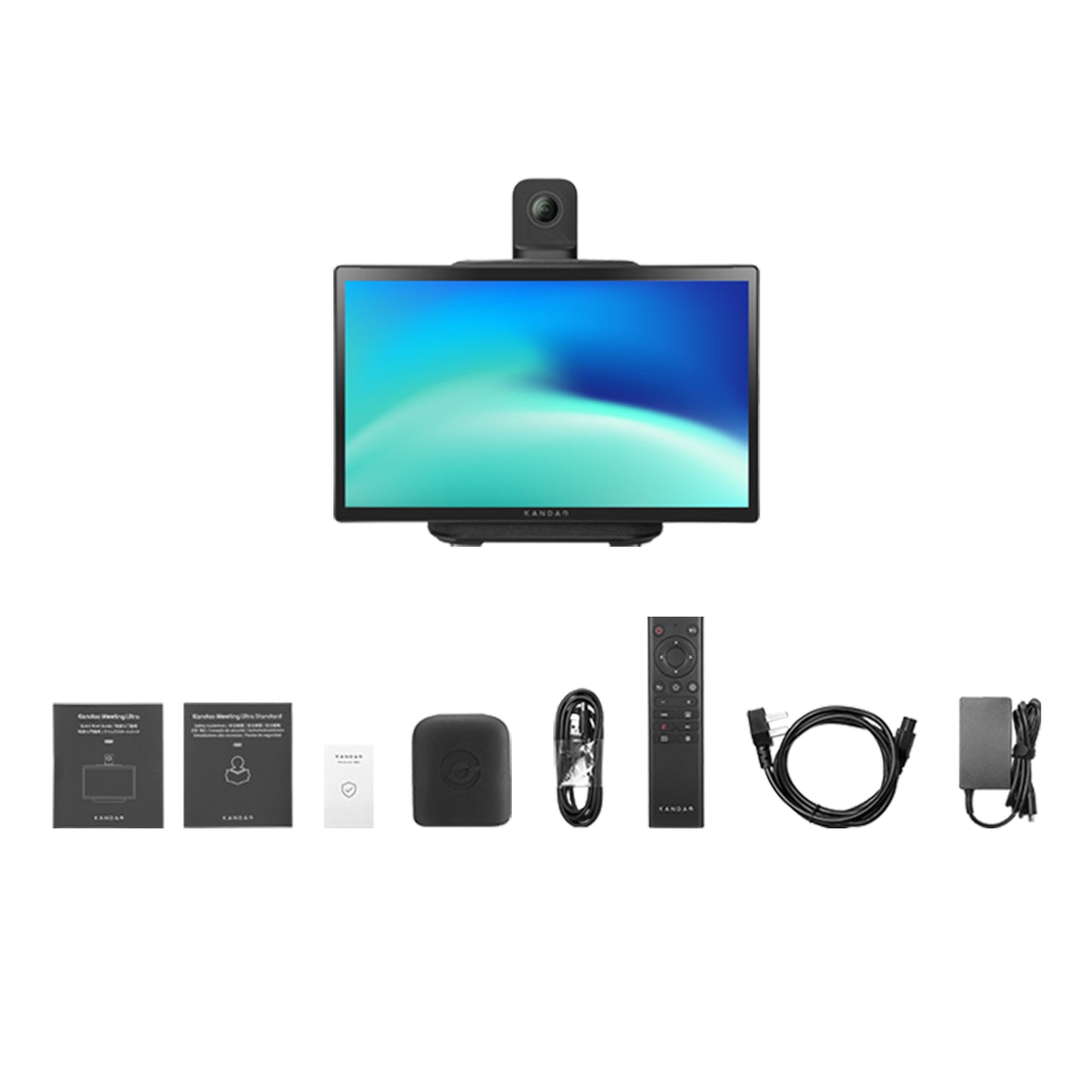

Remote Controller
In large meeting spaces, attendees do not necessarily need to sit around the camera, so a remote controller is another option for meeting management.
Conferencing with Your Platform of Choice
Zoom, Tencent Meeting, GotoMeeting, Skype, Teams, BlueJeans, DingTalk, Slack, Polycom, StarLeaf, Google Meet, Cisco Webex, and more.
Guarantee Your Data Security
Address Security
Do not store IP address and location
Leave No Trace
Support one-step log out.
Prevent Information Leakage
Do not provide an open API.
Bluetooth Toggle
Bluetooth is available to be turned off.
Designed for Small to Large Collaboration Spaces
Meeting Ultra is designed for small to large collaboration spaces.
Network Connection
From a connectivity standpoint, it can connect to any 5G hotspot to truly allow users to have conference meetings anywhere or connect through LAN for a ultra-low latency hybrid collaboration.
Wi-Fi 6 5GHz
1Gbps Ethernet
Auto Power On
It can be set up to automatically power on once charging to greatly improve the efficiency before conferencing.
Excellent connectivity
Specifications
Kandao Meeting Ultra
Main Device | Length | 366mm |
Width | 156.6mm (Screen Folded), 429mm (Screen Unfolded) | |
Height | 327mm | |
Weight | 4190g | |
Remote Controller | Height | 160mm |
Width | 42mm | |
Thickness | 21mm | |
Compatibility | System Requirements | Windows 7 or later, MacOS 10.8 or later |
Compatible Platforms | Teams, Zoom, Tencent Meeting, Google Meet, GotoMeeting, Skype, BlueJeans, DingTalk, Slack, Polycom, StarLeaf, Cisco Webex, and more | |
Touch Screen | Size | 15.6-inch LED Display |
Quantity | Two | |
Touch Control | Dual 10-point capacitive touch | |
Display Resolution | 1920 x 1080, 60Hz | |
Anti-glare and Anti-fingerprint | Support | |
Camera | Resolution @ Frame Rate |
3840*2160@30fps 1920*1080@30fps 1280*720@30fps |
Encoding Format | MJPEG / H264 | |
Microphone | Quantity | Eight Omni-directional beamforming microphones |
Pickup Range | 5.5m | |
Sensitivity | -38dB+/-1dB@1KHz | |
Acoustic Echo Cancellation | Supported | |
Voice Enhancement | Supported | |
Noise Cancellation | Supported | |
Speaker | Power | 10W |

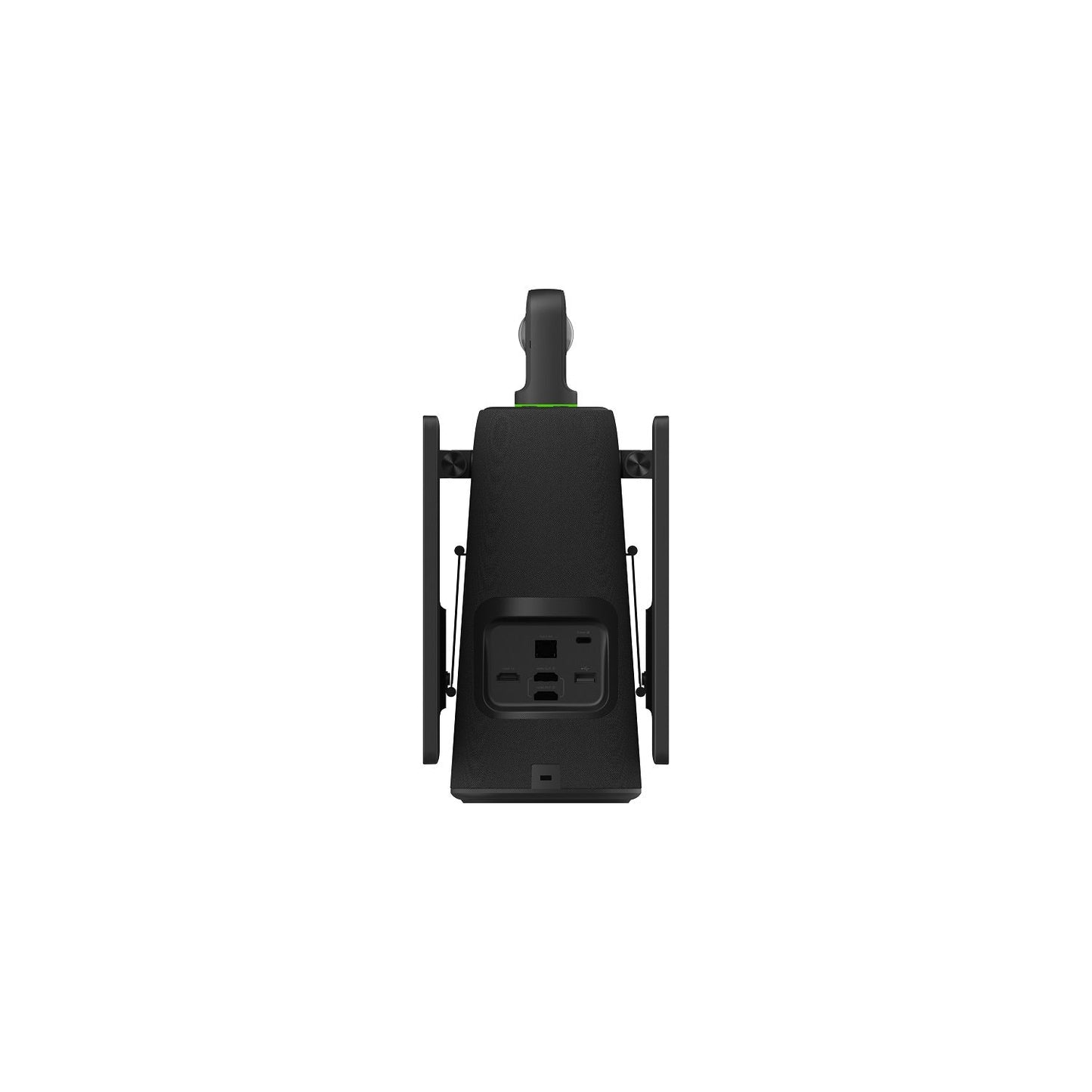

Ports and Interfaces | USB C | USB Type C Out x 1:connect to computer for transmitting audio/video (UVC/UAC) |
USB Type C In x 1: for power supply | ||
Ethernet | RJ45 x 1: Gigabit Ethernet port for wired network transmission, and PoE power supply | |
USB A | USB A x 3: for connect with peripherals, such as mouse and keyboard | |
HDMI | HDMI OUT 2.1 x 2:Video output, displaying system interface | |
HDMI IN 2.0 x 1:HDMI 2.0, Video input for screen sharing from a computer | ||
Wi-Fi | 2.4G + 5G,Wi-Fi 6 | |
Bluetooth | Bluetooth 5.0 | |
Device Lock Hole | for Kensington Security Lock | |
Screw Hole | 1/4 inch | |
Storage | System Memory | 64G |
Micro SD Card | Support FAT32 and exFat format. (Up to 1TB) | |
Power Supply | Adapter | Input: AC100-240V 50/60Hz 0.45A max Output: DC 15V 3A |
PoE | Support IEEE802.3bt; 44-58V 1A |
